HONDA CTR FL5 THERMOSTATIC OIL COOLER KIT

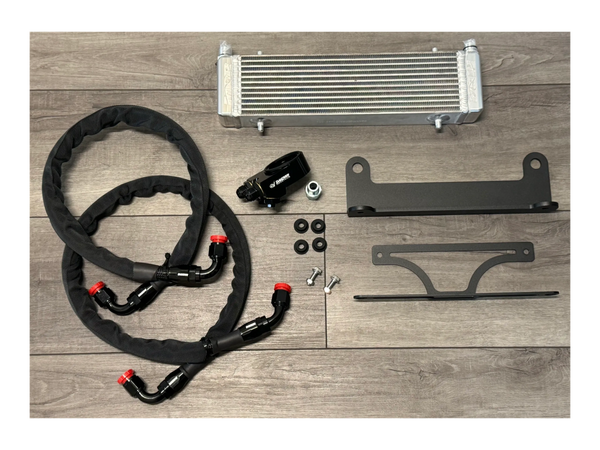

Our premier oil cooler kit includes everything that is needed for a smooth installation, without the need for any modification to the vehicle. The brackets utilize all existing factory points while situating the oil cooler in direct ambient flow.
The factory rubber ambient air duct behind the grill directs air flow directly to the core and the radiator.
Floating style brackets utilizing rubber isolators support the oil cooler core and are designed to avoid vibrations that sometimes results in weld cracks after normal highway driving or racing around the track.
Utilizing a bar and plate core, we were able to minimize ambient air pressure drop while maintaining a high heat transfer as compared to standard off the shelf oil cooler cores.

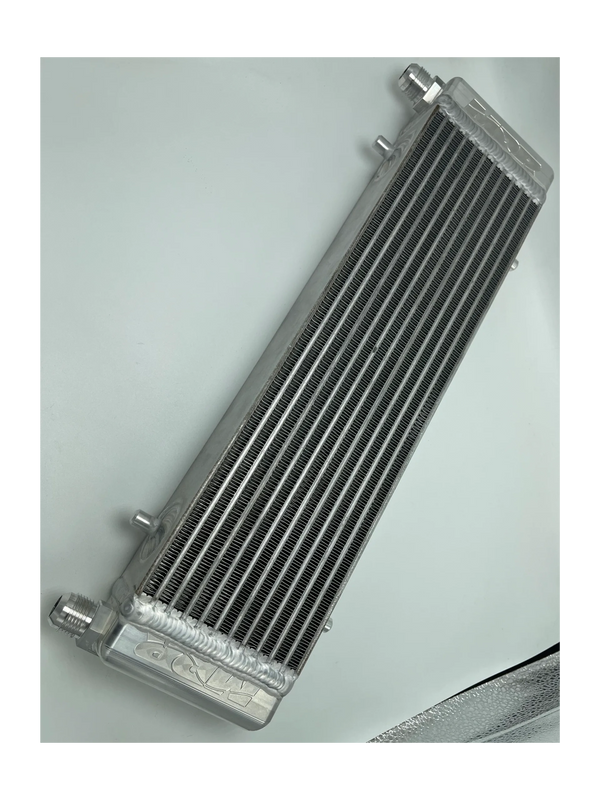

OIL COOLER CORE ASSEMBLY FEATURES
- Billet 6061-T6 aluminum machined end tanks
- Bar and plate core - 2.25"x4.26"x15.0"
- 100% pressure tested
- TIG welded
- Assembled in Simi Valley, CA
OIL HOSES FEATURES
- -10AN braided line with anodized aluminum fittings
- Industrial heavy duty black protective cover hose sheath prevents braided hose from chafing

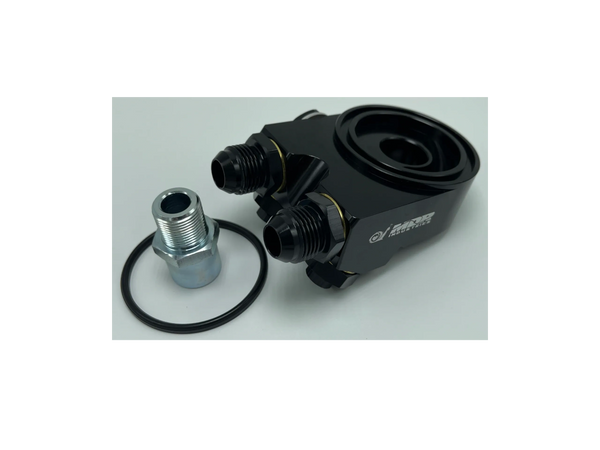

THERMOSTATIC OIL FILTER SANDWICH FEATURES
- Anodized billet aluminum oil filter sandwich plate with 2 additional spare ports for optional pressure and temperature sensors
- Thermostatic sandwich plate allows engine to warm up safely

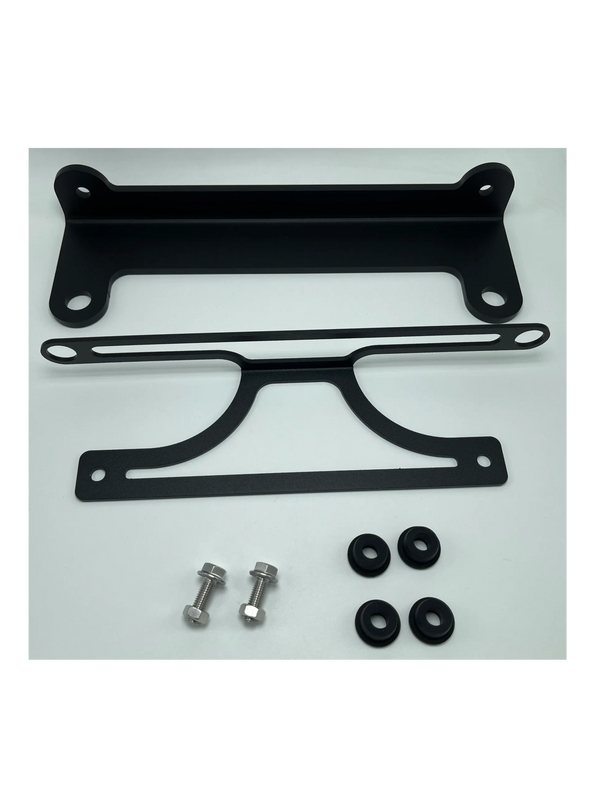

MOUNTING BRACKETS FEATURES
- Powder-coated black aluminum brackets
- Utilizes all factory mounting locations without any modifications to the vehicle
- Rubber isolators
- 304 stainless steel nuts and bolts
PN: 925-195
MSRP: $950.00
